Invisicook: Technical Design & Installation Resource

The Heart of the Home, Reimagined

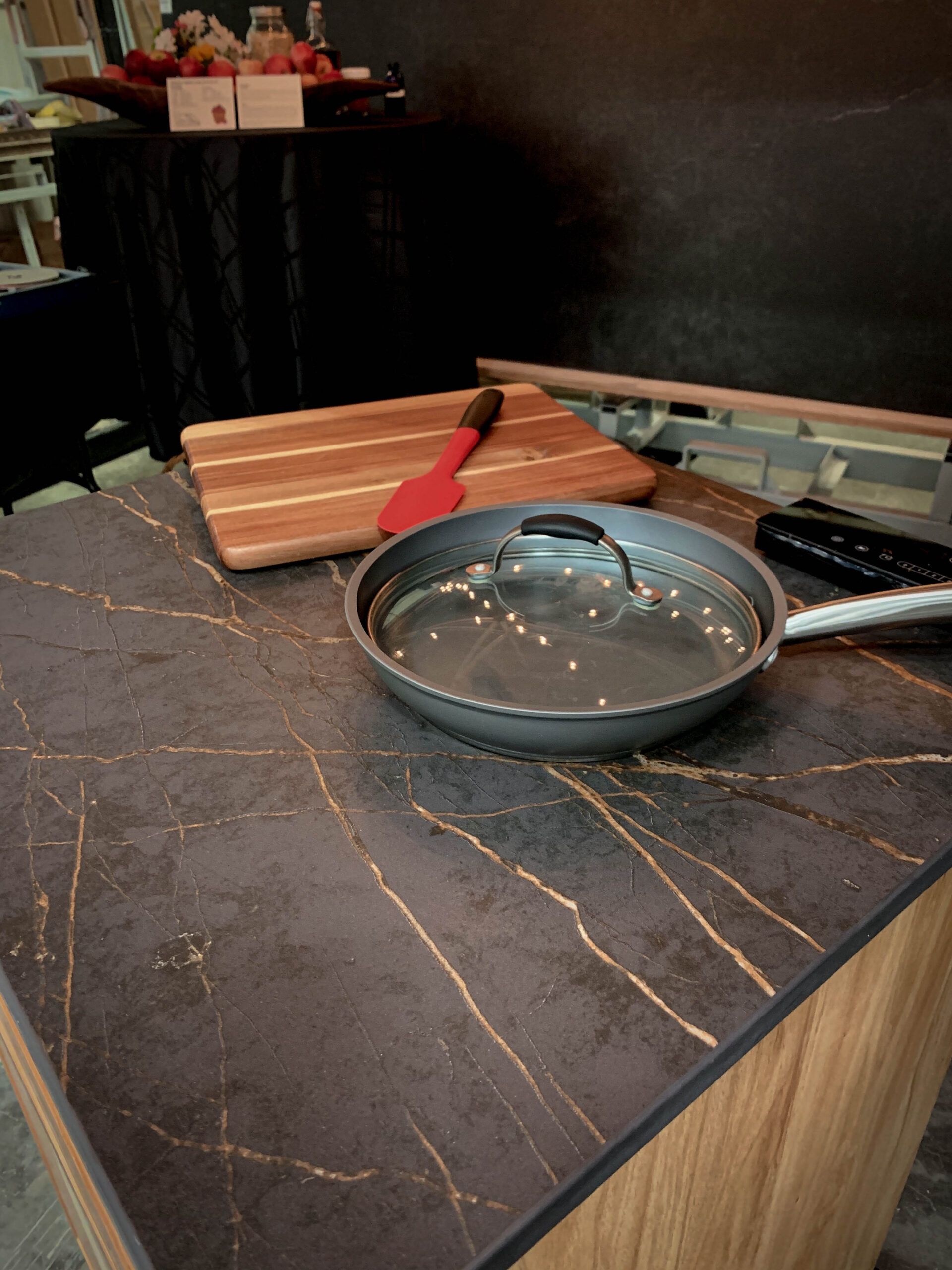

At Surface Creations we believe a kitchen should be as versatile as the family that gathers within it. Invisacook technology allows for the installation of high-performance induction heating directly beneath your countertop, effectively removing the visual and physical boundaries of a traditional stove. This innovation provides the freedom to prepare meals, do homework, and entertain on a single, uninterrupted surface.

Design and Planning Essentials
  • Material Compatibility: Invisacook untis are approved for Dekton and Porcelain surfaces between 1.2 and 2cm thickness.
  • Structural Setbacks: To ensure the longevity of the stone, burners must be positioned at least 10 inches from any countertop edge or joint.
  • Invisamat Protection: The use of a silicone Invisamat is mandatory during all cooking to protect the surface of the stone and prevent heat transfer from the pans.
  • Cookware Requirements: Proper operation requires the use of Full-Clad, Tri-Ply, or 5-Ply induction-quality cookware.

Technical Planning & Model Specifications

To ensure the stone performs perfectly over time, the manufacturer has specific requirements for unit compatibility with Dekton and Porcelain surfaces.

Electrical Requirements by Model

All units operate on a 220-240V AC (50-60Hz) circuit.

  • Connection: North American 1, 2, 3, and 4-burner units are equipped with a 30 Amp, 250V Twistlock plug.
  • Hardwiring: Units may be hardwired following specific manufacturer diagrams if mandated by local codes.

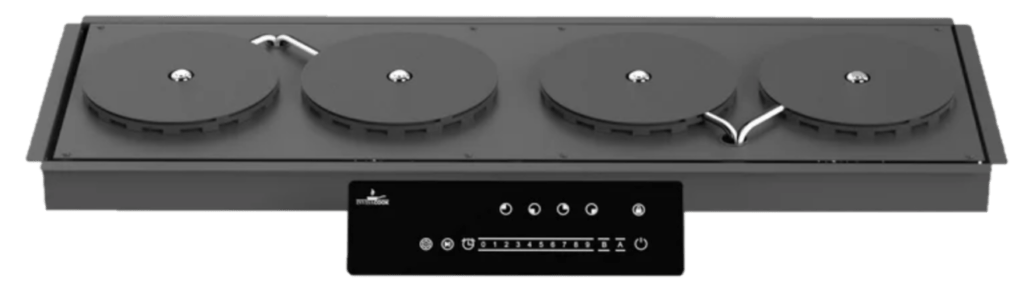

4 Burner Linear

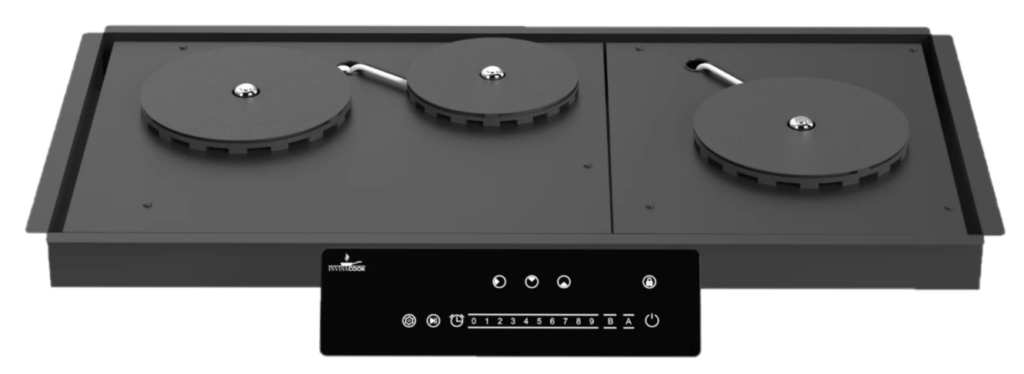

3 Burner

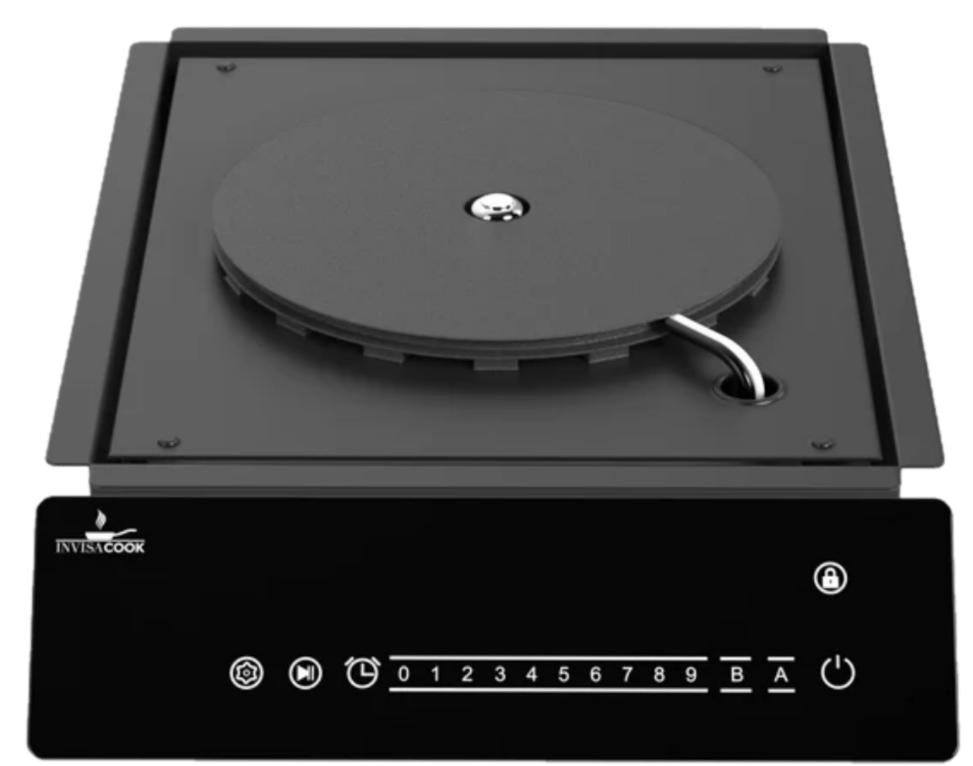

1 Burner

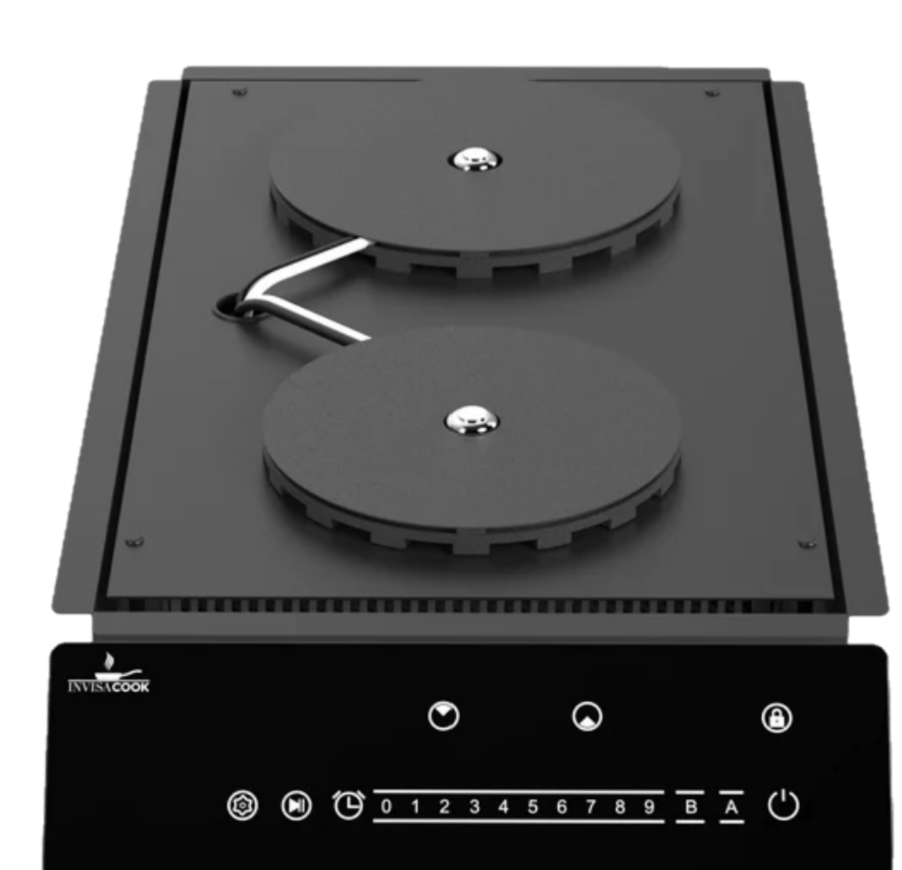

2 Burner

Unit Type
Total Shared Wattage
Amperage
1-Burner
2,000W
~8.3 A
2-Burner
3,600W
~15.0 A
3-Burner
5,200W
~21.7 A
4-Burner Linear
5,200W
23.6 A
Material Validation
  • Approved Surfaces: Validated for use with Dekton and Porcelain only.
  • Validated Thicknesses: Only 12mm (1/2in) and 20mm (3/4in) profiles are permitted.
  • Approved Models: For Dekton applications, use is strictly limited to 1, 2, 3, and 4-Burner Linear/Straight Row models.
  • Prohibited Models: The 5-burner and 4-burner square units are not permitted for use with Dekton due to heat distribution requirements.
Structural Requirements
  • Burner Setbacks: Burner centers must maintain a minimum 10-inch (250mm) distance from any countertop edge, open end, or joint.
  • Fiberglass Mesh: Reinforcement mesh is not permitted on the underside of the material in the induction zone.
  • Internal Geometry: All corners must be fabricated as rounded edges per material manufacturer specifications.
Control Panel Integration

Placement Restrictions: Recesses are not permitted in the countertop surface; control panels must be positioned frontally or horizontally.

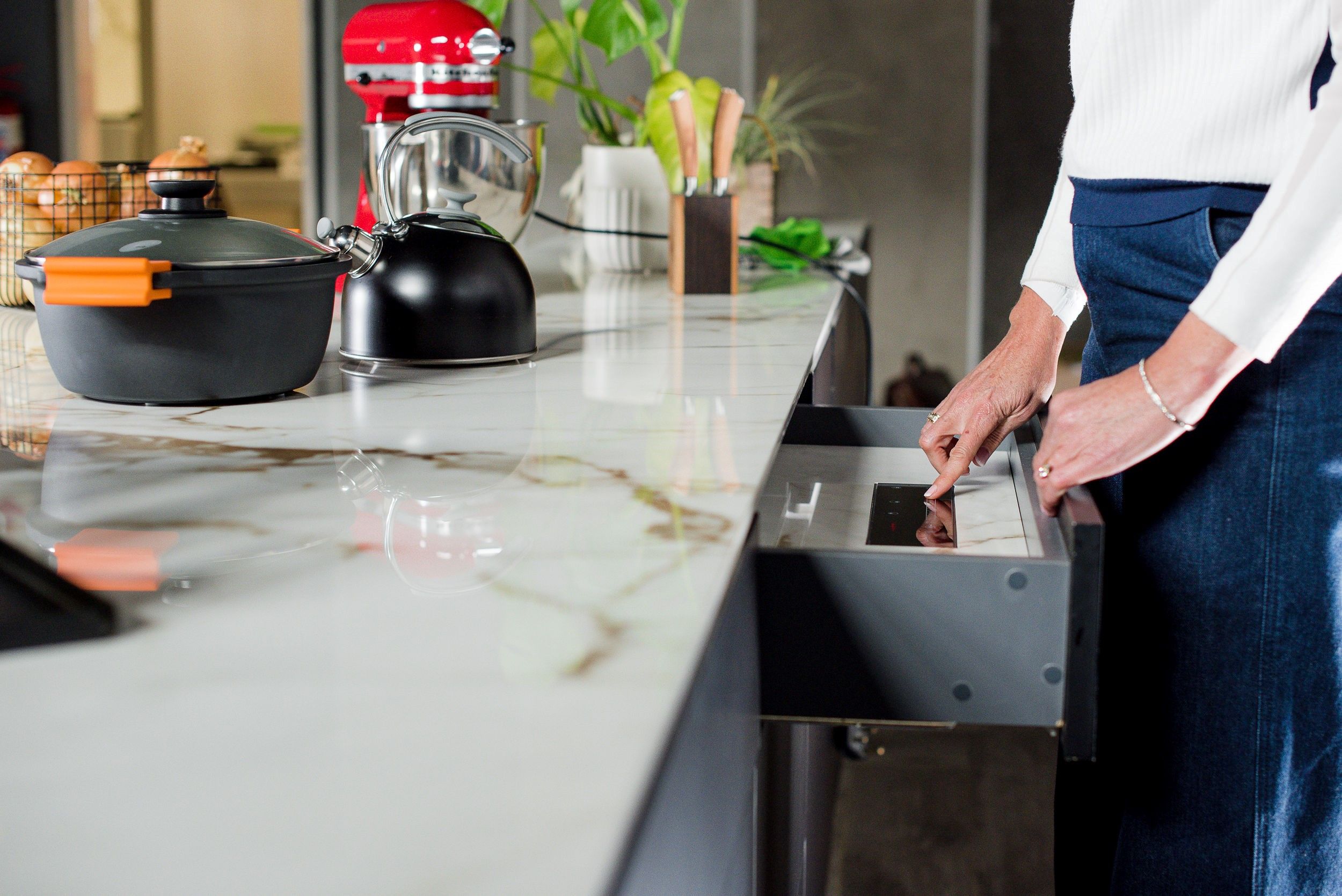

Mounting Options: Successful installations include routing panels into a top drawer, mounting on a cabinet face, or utilizing tip-out trays.

Wireless Control: Units are Wi-Fi enabled, allowing homeowners to operate the system via mobile application.

Integrated Project Coordination

Cabinetry & Ventilation

Success with an invisible cooktop requires thoughtful coordination between the design and installation teams.

Mandatory Air Gap: A 2cm (3/4″) air gap must be maintained between the bottom of the unit and any obstruction below to allow for proper fan ventilation.

Oven-Below Setups: For designs including an oven below the unit, the oven generally requires a lowered support platform to accommodate the ventilation gap.

Minimum Cabinet Base:

  • 1-Burner: 14″ to 24″.
  • 2-Burner: 16″ to 38″.
  • 3-Burner: 38″ to 42″.
  • 4-Burner Linear: 36″ to 40″.

Operational Safety & Expectations

The Invisamat: Use of a silicone Invisamat is mandatory during all cooking to prevent thermal shock and scratching.

Boiling Performance: Because energy travels through the stone, boiling large volumes of water may take longer than a standard glass-top; utilizing an electric kettle to “jump-start” water is recommended.

Cookware Compatibility: Only Full-Clad, Tri-Ply, or 5-Ply induction-quality cookware is compatible.

Sensor Protection: The white Thermo Gel on the burner sensors must remain intact during installation.

Surface Creations performs precision stone fabrication and secures the induction unit using a manufacturer-approved combination of A-B Epoxy, Sink Clips, and Z-Brackets. Mechanical fasteners, such as screws drilled directly into the material, are strictly prohibited.
